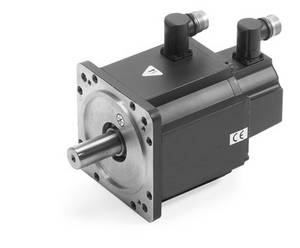

QSY 130 EcoDyn

Motor

QSY 130 C EcoDyn

QSY 130 E EcoDyn

Rated voltage UN

415 V/411 V

407 V/403 V

Rated power output PN

1.6 kW/1.5 kW

2.3 kW/2.1 kW

Rated speed nN

3000 rpm (in EcoDyn mode)

Rated torque MN1)

5.2 Nm/4.7 Nm

7.4 Nm/6.7 Nm

Rated current IN1)

2.7 A/2.4 A

3.8 A/3.4 A

Stall torque M01)

6.0 Nm

9.0 Nm

Stall current I01)

3.0 A

4.5 A

Max. speed nmax

4200 rpm (in EcoDyn mode)

Max. torque Mmax2)

16 Nm

23 Nm

Max. current Imax2)

8.6 A

12.7 A

Mass m

7.9 kg

8.8 kg

9.7 kg

10.6 kg

Rotor inertia J

16.0 kgcm2

16.4 kgcm2

21.0 kgcm2

21.4 kgcm2

Brake

Rated voltage UBr

Rated current IBr

Holding torque MBr

Without

–

–

–

With

DC 24 V

0.6 A

13.5 Nm

Without

–

–

–

With

DC 24 V

0.6 A

13.5 Nm

ID

For motor with ERN 1387

For motor with ECN 1313

For motor with EQN 1325

389053-1C

389053-8C

389053-6C

389053-1D

389053-8D

389053-6D

388422-1C

388422-8C

388422-6C

388422-1D

388422-8D

388422-6D

1) At 100 K 2) Max. 200 ms

Italics: Data for motors with ECN 1313 or EQN 1325 (rated torque reduced by 10 %)
