Linear scale |

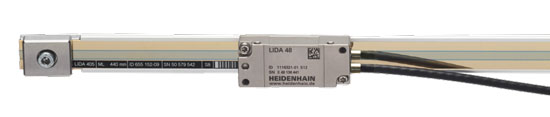

LIDA 405 |
||||
|
Measuring standard Coefficient of linear expansion |
Steel scale tape with METALLUR scale grating; grating period 20 µm Depends on the mounting surface |
||||
|
Accuracy grade |
±5 µm |
||||
|
Baseline error |
≤ ±0.750 µm/50 mm (typical) |
||||
|
Measuring length ML* in mm |
140 240 340 440 540 640 740 840 940 1040 1140 1240 1340 1440 1540 1640 1740 1840 1940 2040 |
||||
|
Larger measuring lengths up to 30 040 mm with a single-section scale tape and individual scale-carrier sections |
|||||
|
Reference marks |
One at midpoint of measuring length |
||||
|
Mass |
115 g + 0.25 g/mm measuring length |
||||
|
Scanning head |
LIDA 48 |
LIDA 47 |
|||
|
Interface |
1 VPP |
TTL |
|||
|
Integrated interpolation* Signal period |
– 20 µm |
5-fold 4 µm |
10-fold 2 µm |
50-fold 0.4 µm |
100-fold 0.2 µm |
|
Cutoff frequency –3 dB |
≥ 500 kHz |
– |
|||
|
Scanning frequency* |
– |
≤ 400 kHz ≤ 200 kHz ≤ 100 kHz ≤ 50 kHz |
≤ 200 kHz ≤ 100 kHz ≤ 50 kHz ≤ 25 kHz |
≤ 50 kHz ≤ 25 kHz ≤ 12.5 kHz |
≤ 25 kHz ≤ 12.5 kHz ≤ 6.25 kHz |
|
Edge separation a1) |
– |
≥ 0.100 µs ≥ 0.220 µs ≥ 0.465 µs ≥ 0.950 µs |
≥ 0.100 µs ≥ 0.220 µs ≥ 0.465 µs ≥ 0.950 µs |
≥ 0.080 µs ≥ 0.175 µs ≥ 0.370 µs |
≥ 0.080 µs ≥ 0.175 µs ≥ 0.370 µs |
|
Traversing speed1) |
≤ 600 m/min |
≤ 480 m/min ≤ 240 m/min ≤ 120 m/min ≤ 60 m/min |
≤ 240 m/min ≤ 120 m/min ≤ 60 m/min ≤ 30 m/min |
≤ 60 m/min ≤ 30 m/min ≤ 15 m/min |
≤ 30 m/min ≤ 15 m/min ≤ 7.5 m/min |
|
Interpolation error |
±45 nm |
– |
|||
|
Limit switches |
L1/L2 with two different magnets; output signals: TTL (without line driver) |
||||
|
Electrical connection |
Cable, 0.5 m, 1 m or 3 m, with 15-pin D-sub connector (male) |
||||
|
Cable length |
See interface description, however limit: ≤ 20 m (with HEIDENHAIN cable) |
||||
|
Voltage supply |
DC 5 V ±0.5 V |
||||
|
Current consumption |
< 130 mA |
< 150 mA (without load) |
|||
|
Vibration 55 Hz to 2000 Hz Shock 6 ms |
≤ 500 m/s2 (EN 60 068-2-6) ≤ 1000 m/s2 (EN 60 068-2-27) |
||||
|
Operating temperature |
–10 °C to 70 °C |
||||
|
Mass Scanning head Connecting cable Connector |
20 g (without cable) 22 g/m 32 g |
||||
|
* Please select when ordering 1) At a corresponding cutoff or scanning frequency |
|||||
